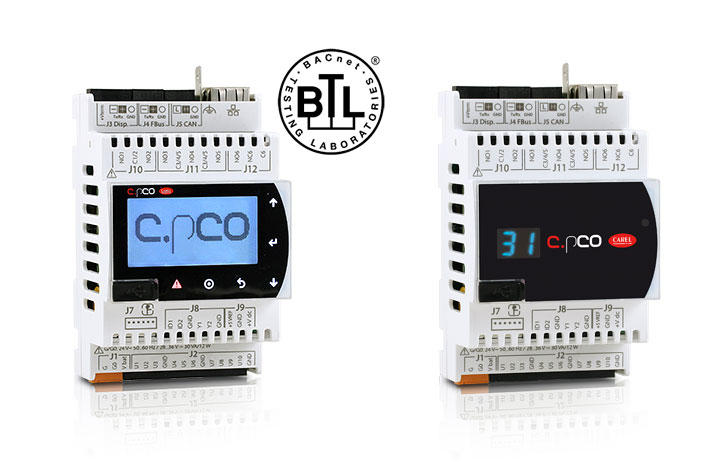

c.pCO mini
Ogólne właściwości
The c.pCO mini universal programmable controllers are designed for applications with limited space in the ventilation, chiller, rooftop, rack, close control and blast chiller markets.
They offer specific features to improve efficiency in HVAC/R systems, specifically:
- flexibility of use due to their compact size compared to the c.pCO (4 DIN modules) and the different product models (basic, enhanced, high end), available in panel or DIN rail mounting versions. All the models feature a USB port and universal I/O channels, with additional channels available through I/O expansions;
- built-in driver for controlling unipolar electronic expansion valves;
- connectivity through up to two FieldBus and BMS serial lines with configurable protocol (CAREL or Modbus®) and one USB port;
- networking via the built-in Ethernet interface (IPV6 ready), with a wide range of standard protocols available for local connectivity (web server via HTTP, Modbus TCP/UDP, BACnet IP/MSTP, FTP, FTPS, DHCP, DNS, mDNS, NTP).
c.pCO mini models are for programming using the c.suite or STone development environments.-
Więcej
Compactness
Different versions available in terms of the number of I/Os, connectivity and unipolar electronic expansion valve driver option, all in just four DIN modules. Both DIN rail and panel mounting optimise space occupied in the application.
Programmability
Depending on the model, c.pCO mini can be programmed using the c.suite development environment or the new STone development environment.
Security
Cybersecurity is a priority, constantly guaranteed on the c.pCO mini controllers through periodic security assessments carried out by independent third parties. The STone-based models are designed in line with the IEC 62443 standard, integrating advanced features such as secure boot and digital signature with asymmetric encryption system.
I/O Flexibility
In addition to 6 relays, all c.pCO mini models have 10 universal I/O channels, allowing custom arrangements of inputs/outputs. Thanks to the CAREL proprietary ASIC chip, the universal channels can be configured independently as analogue inputs, digital inputs or analogue outputs.
Advanced connectivity
c.pCO mini, on the models where featured, has a built-in Ethernet port for connection to the tERA cloud platform without requiring additional gateways. The c.pCO mini models have up to two built-in serial interfaces (BMS and/or FieldBus) and a USB-C host port. Choice of a wide range of communication protocols (e.g. Modbus, CAREL, BACNet, Konnex, TCP/IP, HTTP, FTP, DHCP, DNS, NTP, SNMP). STone-based models natively feature connection to CAREL apps.
Dokumentacja
Technical
-
Instrukcje obsługi
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +0300057IT Opis c.pCO Controllo programmabile Język ITA Data 28/03/2025 Wersja 1.7 Kod +0300057EN Opis c.pCO Programmable Controller Język ENG Data 28/03/2025 Wersja 1.7 Kod +0300057PL Opis c.pCO sistema Kontroler Programowalny Język POL Data 28/03/2025 Wersja 1.7 Kod +0300057RU Opis Семейство c.pCO Программируемый контроллер Język RUS Data 26/10/2020 Wersja 1.4 -
Rysunki 2D/3D
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod 2d-3d cpCOmini DIN Opis 2D-3D drawings Język ALL Data 10/11/2015 Wersja R0 Kod 2d-3d cpCOmini - Panel version Opis 2D-3D drawings Język Data 10/11/2015 Wersja R0 -
Ulotki techniczne
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +0500058ML Opis P+D* and P+P*: c.pCOMini – Control Programable Integrado / Controle Programável Integrado Język POR SPA Data 26/05/2025 Wersja 1.9 Kod +0500058IE Opis P+D* and P+P*: c.pCOMini – Controllo Programmabile Integrato / Integrated Programmable Controller Język ENG ITA Data 26/05/2025 Wersja 1.9 Kod +0500058ZH Opis P+D* and P+P*: c.pCO mini – 集成式可编程控制器 / Integrated Programmable Controller Język CHI ENG Data 10/04/2024 Wersja 1.8
Commercial
-
Brochure
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +3000098IT Opis c.pcosistema efficienza grazie al collegamento in rete Język ITA Data 01/04/2016 Wersja 2.0 Kod +3000098RU Opis C.PCO SISTEMA Język RUS Data 01/04/2016 Wersja 2.0 Kod +3000082EN Opis Exhibition @ a glance Język ENG Data 09/10/2014 Wersja 2.0 -
Other related documentation
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +800004030 Opis Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Język ITA Data 05/02/2025 Wersja 1.3 Kod +800004031 Opis Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving Język ENG Data 05/02/2025 Wersja 1.3 Kod +800004036 Opis Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach Język POL Data 05/02/2025 Wersja 1.3 Kod +3000262EN Opis Highly-efficient energy recovery for controlled mechanical ventilation units - Combined thermal wheel + reverse-cycle heat pump solution Język ENG Data 01/08/2024 Wersja 1.0 Kod +3000262IT Opis Recupero dell’energia ad alta efficienza per unità di ventilazione meccanica - Soluzione combinata di scambiatore di calore rotativo e pompa di calore reversibile Język ITA Data 01/08/2024 Wersja 1.0
Images
-
High resolution images
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod PH14LP+30B-cpCO-mini-no-display Opis c.pCOmini-CAREL-Programmable Controls-c.pCO sistema Język ALL Data 02/09/2021 Wersja R.0 Kod PH14LP+306-cpCO-mini Opis c.pCOmini-CAREL-Programmable Controls-c.pCO sistema Język ALL Data 02/09/2021 Wersja R.0 Kod PH14LP+307-cpCO-mini-frontal Opis c.pCOmini-CAREL-Programmable Controls-c.pCO sistema Język ALL Data 02/09/2021 Wersja R.0 Kod PH14LP+305-cpCOmini-panel Opis c.pCOmini panel-CAREL-Programmable Controls-c.pCO sistema Język ALL Data 02/09/2021 Wersja R.0 Kod PH14LP+306-cpCO-mini Opis cpCO-mini Język ALL Data 01/05/2014 Wersja R.0
