c.pCOe

c.pCOe

  • Ogólne właściwości

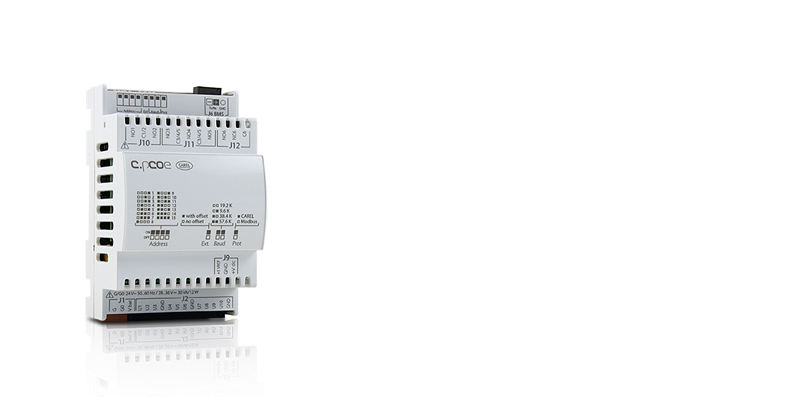

    c.pCOe is the I/O expansion card, built using with CAREL-proprietary microchip, that allows considerable flexibility in the configuration of the various pins, both as inputs (support for passive NTC, PTC, PT1000 probes, digital inputs and active voltage and current probes) and as outputs (0-10 V, PWM).

    The c.pCOe card is available in 2 versions:

    • Basic version, with a total of 16 I/O channels available, 10 of which can be configured as analogue inputs or outputs, and 6 relays.
    • Enhanced version, same I/O configuration as the basic version, with the addition of a built-in driver for managing a CAREL unipolar electronic expansion valve.

  • Więcej
    • DIN rail mounting (4 DIN)
    • 10 universal channels (inputs/outputs)
    • 6 relays
    • 24 Vac/Vdc power supply
    • Integrated RS485 port
    • c.Suite and 1tool libraries for rapid integration
    • Built-in unipolar EXV driver (Enhanced version)
    • Ultracap module support (Enhanced version)


Dokumentacja

Technical

  • Instrukcje obsługi
    * Entries are ordered by date
    Kod Opis Język Data * Wersja
    Kod +0300057EN

    		 Opis c.pCO Programmable Controller

    		 Język ENG

    		 Data 20/06/2023

    		 Wersja 1.6

  • Rysunki 2D/3D
    * Entries are ordered by date
    Kod Opis Język Data * Wersja
    Kod 2d-3d cpCOe

    		 Opis 2D-3D drawings

    		 Język ALL

    		 Data 01/12/2016

    		 Wersja R0

  • Ulotki techniczne
    * Entries are ordered by date
    Kod Opis Język Data * Wersja
    Kod +0500059IE

    		 Opis P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion

    		 Język ENG  ITA

    		 Data 14/02/2022

    		 Wersja 1.4

    Kod +0500059FR

    		 Opis P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion

    		 Język ENG  FRE

    		 Data 14/02/2022

    		 Wersja 1.4


Images
