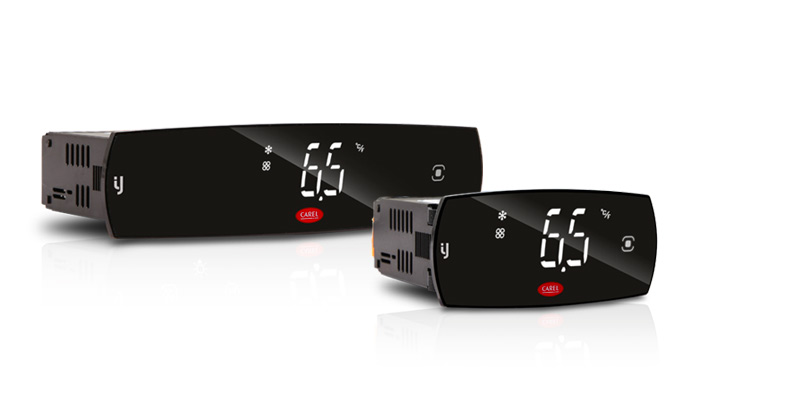

iJW for smarter field commissioning

IJW*
iJW for smarter field commissioning
  • Ogólne właściwości

    iJW is the new range of CAREL controllers for refrigeration, aimed at refrigeration engineers operating in the distribution channel. Suitable for both new installations and retrofits, iJW has been designed to simplify the replacement and configuration of the controller on display cabinets, bottle coolers, plug-ins, chest freezers and in many other applications.



    Native NFC and Bluetooth connectivity allows quick and intuitive interfacing to smartphones via the CAREL APPLICA app. The new Wizard for configuring iJW based on the application requirements and system specifications, makes it much simpler to set up the new controller.

    The built-in BMS connectivity port can be used for local and/or remote monitoring without needing for a converter for communication with the supervisor system.



    The frameless, capacitive touch design gives an elegant and professional touch, while also making cleaning easier. The controller’s minimal appearance makes it easy to integrate aesthetically into any type of application and context.



    Product part number Format Application
    (No. of relays)
    BT
    IJWPSA2N01S0724 Small Medium temperature
    (2)
    No
    IJWPSA2B02S0519 Small Medium temperature
    (2)
    Yes
    IJWPSA4N01S0527 Small Low temperature
    Medium temperature
    (4)
    No
    IJWPSA4R02S0518 Small Low temperature (BMS CAREL protocol)
    Medium temperature (BMS CAREL protocol)
    (4)
    No
    IJWPSA4B02S0523 Small Low temperature
    Medium temperature
    (4)
    Yes
    IJWPSA4B07S0517 Small Low temperature
    Medium temperature
    Humidity
    (4)
    Yes
    IJWPLA6B07S0516 Large Low temperature
    Medium temperature
    Humidity
    (6)
    Yes
  • Więcej

    Versatility

    The ideal solution for technical service in the field, both for new installations and for replacement and/or maintenance. A small number of product versions can cover a wide variety of refrigeration applications, such as catering displays, bottle coolers, multiplexed cabinets, refrigerated display cases, chest freezers, etc.

    Connectivity and simplicity

    iJW simplifies the initial configuration of the controller using the Wizard, a multilingual procedure that guides users step-by-step through the entire unit commissioning process. The configuration can then be saved to a smartphone, shared with contacts and subsequently imported to other similar units, saving time and optimising the scheduling of activities.

    HACCP

    The Bluetooth® option also enables live monitoring of variables and access to the temperature log. The temperature and alarm logs are easy to export, simplifying compliance with the HACCP protocol for the end user.

    Usability and navigability

    Removable connectors simplify wiring and installation. In addition, the capacitive touch screen keypad, backlit icons and buttons and wide display provide clear visibility and easy and immediate interaction, also for end users.



Dokumentacja

Technical

  • Instrukcje obsługi
    Kod Opis Język Data * Wersja
    Kod +0300103EN

    Opis iJW Electronic controller for field service and new installations

    Język ENG

    Data 14/09/2022

    Wersja 1.0

    Kod +0300103IT

    Opis iJW Controllo elettronico per interventi sul campo e nuove installazioni

    Język ITA

    Data 14/09/2022

    Wersja 1.0

  • Ulotki techniczne
    Kod Opis Język Data * Wersja
    Kod +0500165ML

    Opis iJW Large 6 Relay Start Guide

    Język ENG

    Data 28/07/2022

    Wersja 2.0

    Kod +0500169ML

    Opis Warnings

    Język ARA  CHI  DAN  ENG  FIN  FRE  GER  GRE  HUN  IND  ITA  KOR  NOR  POL  POR  RUS  SER  SLO  SPA  SWE  THA

    Data 28/07/2022

    Wersja 2.0

    Kod +0500168ML

    Opis iJW Small 2 Relay Start Guide

    Język ENG

    Data 28/07/2022

    Wersja 2.0

    Kod +0500167ML

    Opis iJW Tecnical Characteristics

    Język ARA  CHI  DAN  ENG  FIN  FRE  GER  GRE  HUN  IND  ITA  KOR  NOR  POL  POR  RUS  SER  SLO  SPA  SWE  THA

    Data 28/07/2022

    Wersja 2.0

    Kod +0500166ML

    Opis iJW Small 4 Relay Start Guide

    Język ENG

    Data 28/07/2022

    Wersja 2.0


Commercial

  • Brochure
    Kod Opis Język Data * Wersja
    Kod +3000176EN - Chillventa 2022

    Opis OnShow - Chillventa 2022

    Język ENG

    Data 05/10/2022

    Wersja 2.0

    Kod +3000235IT_low

    Opis iJW - La soluzione “smart” per la refrigerazione per interventi sul campo e nuove installazioni

    Język ITA

    Data 29/09/2022

    Wersja 1.1

    Kod +3000235EN_low

    Opis iJW - The smart solution for refrigeration for field service and new installations

    Język ENG

    Data 29/09/2022

    Wersja 1.1
