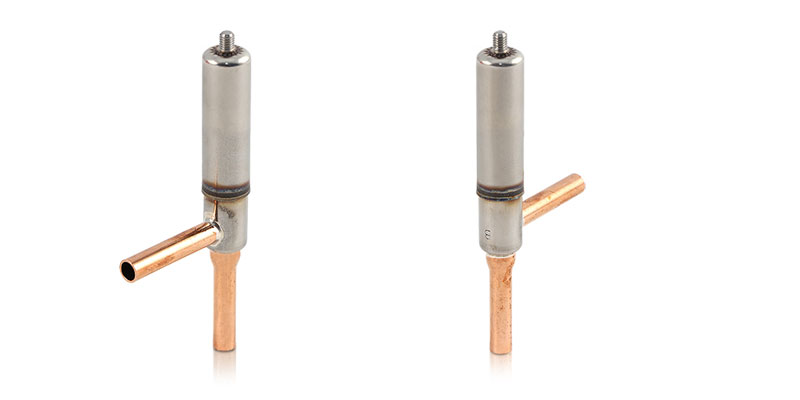

E2V - F (hermetic)
E2V-F*
Ogólne właściwości
The CAREL E2V electronic expansion valves for low capacity applications combine high reliability and precise control, guaranteed by the equal percentage characteristic of the movable element and the 15 mm stroke without axial rotation.
The wide range available can cover all applications that require cooling capacities up to 40 kW. The possibility of operation with fluid flow in both directions is especially useful when the valve is used for heat pump applications, moreover simplifying refrigerant circuit layout and reducing installation costs. Fitted on all sizes, the Teflon gasket on the movable element guarantees perfect tightness on closing.
The E2V-F valve is made using high quality laser welding and premium grade materials, such as AISI 316; these characteristics ensures perfect tightness on closing. The valve is supplied fully assembled and ready for use, to simplify system installation and commissioning and to reduce related costs.
Dokumentacja
Technical
-
Ulotki techniczne
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +050001675 Opis E2V-F - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / Válvula de expansión electrónica Język ENG FRE GER ITA SPA Data 07/02/2022 Wersja 1.9 Kod +050001680 Opis E2V-F Unipolar - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica Język ENG FRE GER ITA SPA Data 07/02/2022 Wersja 1.9
Images
-
High resolution images
* Entries are ordered by date

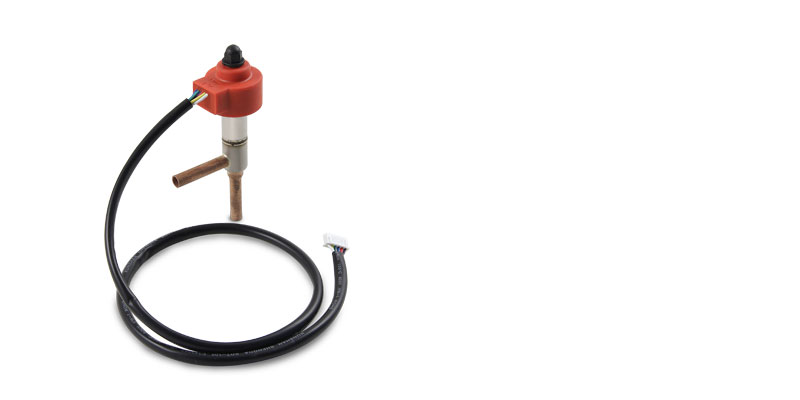

Kod Opis Język Data * Wersja Kod PH14LE2302-E2V-f-stator Opis CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology Język ALL Data 11/03/2022 Wersja R.0 Kod PH17LE2302-E2V-f Opis CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology Język ALL Data 11/03/2022 Wersja R.0 Kod PH17LE2303-E2V-f-rear Opis CAREL E2V - F (hermetic) - Electronic expansion valve - ExV - EEV Technology Język ALL Data 11/03/2022 Wersja R.0
