Heosbox CO2
Ogólne właściwości

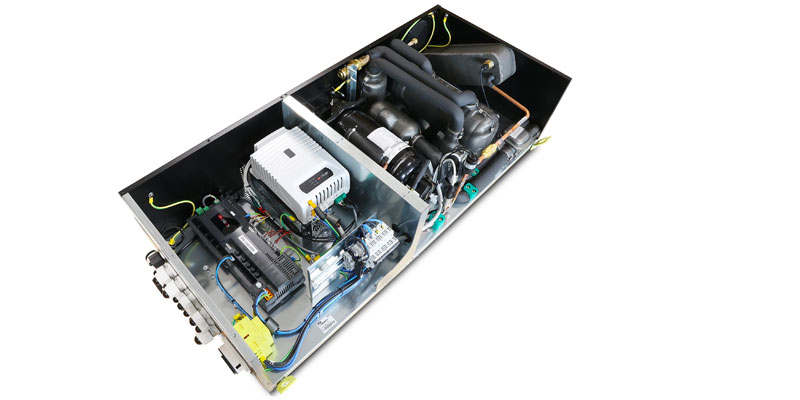

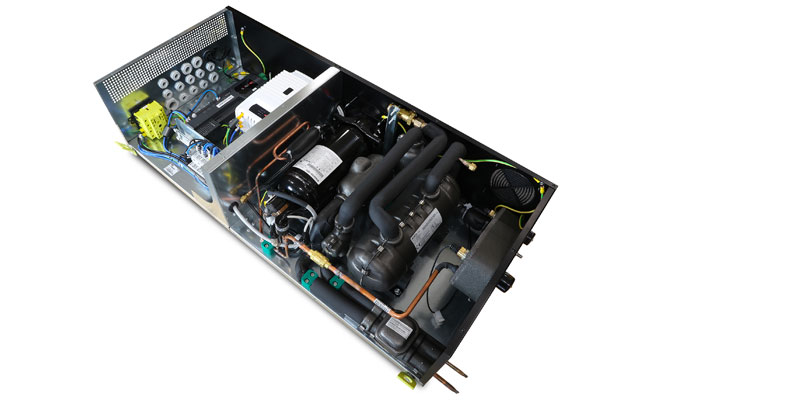

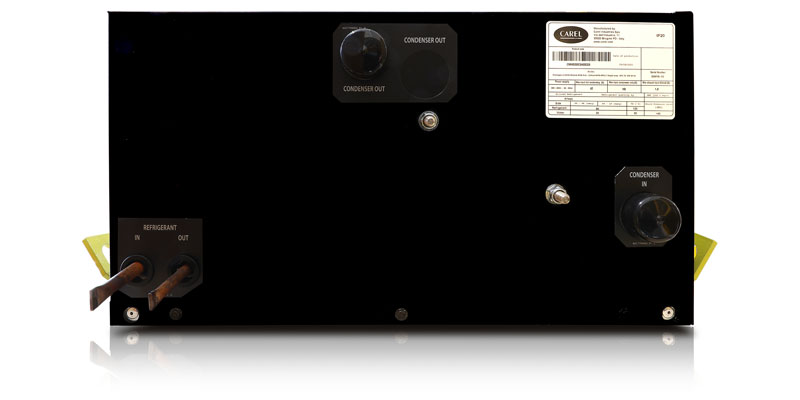

"Heosbox CO2" units are water-cooled condensing units incorporating the Heos high-efficiency solution for CO2 applications:
- BLDC variable speed compressors. Permanent magnet brushless motors and "double rotary" construction allow maximum efficiency, a wide modulation range (25-100%), compact design and low noise.
- DC driver. CAREL drivers for Heos applications feature the highest control precision and reliability.
The class B firmware guarantees the system additional electronic protection. - Electronic expansion valve. Thanks to the stepper motor, Heosbox CO2 provides continuous control of the evaporation temperature to ensure maximum efficiency in all conditions, including through preventive monitoring actions.
- Heos controller. The controller on one hand provides complete functional management of the showcase (lights, fans, heaters, alarms, etc.), and on the other perfect synchronisation between the variable-speed compressor and electronic valve.
Complete knowledge of how the unit is operating allows the adoption of advanced control logic and preventive monitoring actions for greater reliability of the entire solution.
Heosbox CO2 units are designed and optimised for subcritical commercial refrigeration applications, and essentially comprise:

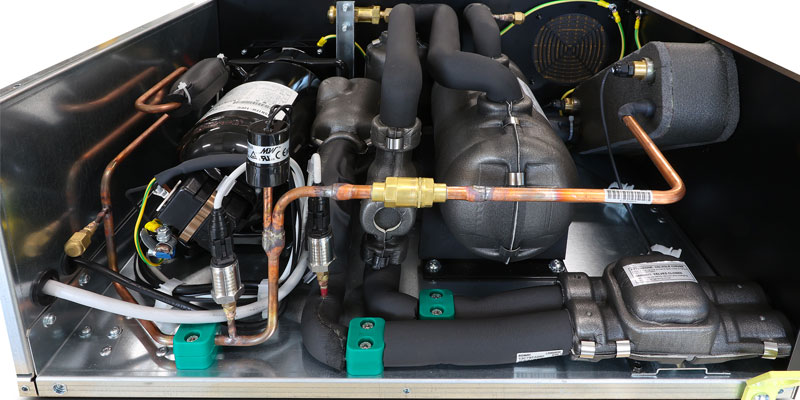

- a partial refrigeration circuit, to be coupled to an evaporating coil

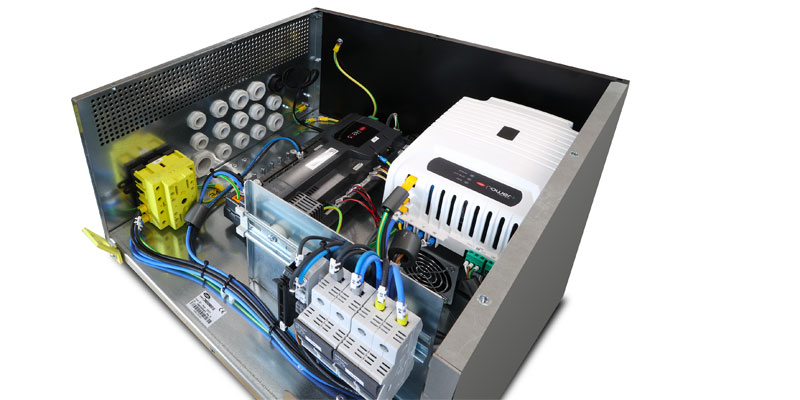

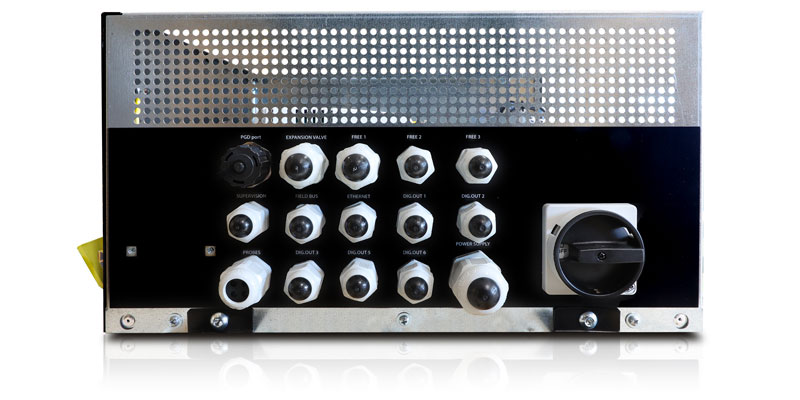

- an electrical panel featuring power distribution and a control system.
The solution fulfils current market and regulatory requirements:
- reduction of direct emissions through the use of a natural refrigerant
- reduction of indirect emissions through high efficiency solutions.
Subcritical design allows:
- a reduction in installation costs thanks to lower operating pressures and a simplified design of the refrigeration circuit (similar to units with HFCs)
- greater operating flexibility: medium or low temperature applications in both single evaporator and multi-evaporator configurations
- synergies to be created with the existing air conditioning system, making it possible to optimise global site efficiency.
-
Więcej
The benefits of Heos technology...
Continuous system modulation
Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.
Energy efficiency
The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.
Maximum food preservation quality
Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.
…with the advantages of advanced connectivity and dedicated services:
Remote connectivity to supervisory systems
Compatibility with supervisory systems: wired connection (via Ethernet or serial) or wireless (WiFi kit).
Local connectivity to the Heos controller
Easy connection to the Heos controller, either wired (Fieldbus) or wireless (via a user interface equipped with Bluetooth and/or NFC connectivity).
Dedicated IOT services
The 100% CAREL design and Heos technology provide perfect knowledge of the unit’s operation and performance. Dedicated services are available, including remote monitoring, data analysis and advanced algorithms for predictive maintenance.
Dokumentacja
Technical
-
Electrical Schemes
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod HB200CXX00SE0_El Opis Q.E. SECONDARY Język ALL Data 07/04/2022 Wersja R0 Kod HB200C1000CE0_EI Opis EP HEOS BOX CE WITH INVERTER PSD2 24A AND POWER BOARD Język ALL Data 03/08/2021 Wersja R0 Kod HB200C0670CE0_El Opis EP HEOS BOX CE WITH INVERTER PSD2 18A AND POWER BOARD Język ALL Data 02/08/2021 Wersja R0 Kod HB200C0300CE0_HB200C0450CE0_El Opis EP HEOS BOX CE WITH INVERTER PSD2 12A AND POWER BOARD Język ALL Data 29/06/2021 Wersja R0 -
Instrukcje obsługi
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +0300145EN Opis Heosbox controller Język ENG Data 06/07/2023 Wersja 1.1 Kod +0300145IT Opis Heosbox controller Język ITA Data 06/07/2023 Wersja 1.1 Kod +0300140EN Opis HEOS BOX R744 Assembly instructions, including user and maintenance information CE version Język ENG Data 25/05/2022 Wersja 1.0 Kod +0300140IT Opis HEOS BOX R744 Istruzioni per l’assemblaggio, comprensive di informazioni per l’uso e la manutenzione Versione CE Język ITA Data 25/05/2022 Wersja 1.0 -
Rysunki 2D/3D
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod 3D Heosbox CO2 HB200CXX00SE0 Secondary_panel Opis 2D-3D drawings Heosbox CO2 HB200CXX00SE0 Secondary_panel Język ALL Data 22/06/2022 Wersja R.0 Kod 3D Heosbox CO2 HB200C1000CE0 Opis 2D-3D drawings Heosbox CO2 HB200C1000CE0 Język ALL Data 22/06/2022 Wersja R.0 Kod 3D Heosbox CO2 HB200C0600CE0 Opis 2D-3D drawings Heosbox CO2 HB200C0600CE0 Język ALL Data 22/06/2022 Wersja R.0 Kod 3D Heosbox CO2 HB200C0400CE0 Opis 2D-3D drawings Heosbox CO2 HB200C0400CE0 Język ALL Data 22/06/2022 Wersja R.0 Kod 3D Heosbox CO2 HB200C0300CE0 Opis 2D-3D drawings Heosbox CO2 HB200C0300CE0 Język ALL Data 22/06/2022 Wersja R.0 -
Selection tool
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod R744 sizing tool Opis Język ALL Data 14/06/2022 Wersja 1.0
Commercial
-
Brochure
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +3000232IT Opis Heosbox CO2 Efficienza, sicurezza e sostenibilità per i tuoi banchi refrigerati Język ITA Data 31/03/2022 Wersja 1.0 Kod +3000232EN Opis Heosbox CO2 Efficiency, safety and sustainability for your refrigerated showcases Język ENG Data 31/03/2022 Wersja 1.0
Images
-
High resolution images
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod PH21LUP303-heosbox-CO2 Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP30C-heosbox-CO2-electrical Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP30E-heosbox-CO2-electrical Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP30F-heosbox-CO2-open Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP30D-heosbox-CO2-mechanical Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP304-heosbox-CO2-open Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP307-heosbox-CO2-mechanical Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP305-heosbox-CO2-open Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0 Kod PH21LUP306-heosbox-CO2-electrical Opis CAREL Heosbox CO2 - Plug-in and semi plug-in - Food Retail Język ALL Data 06/06/2022 Wersja R.0
