EVD module

WM00EN*
EVD module
  • Ogólne właściwości

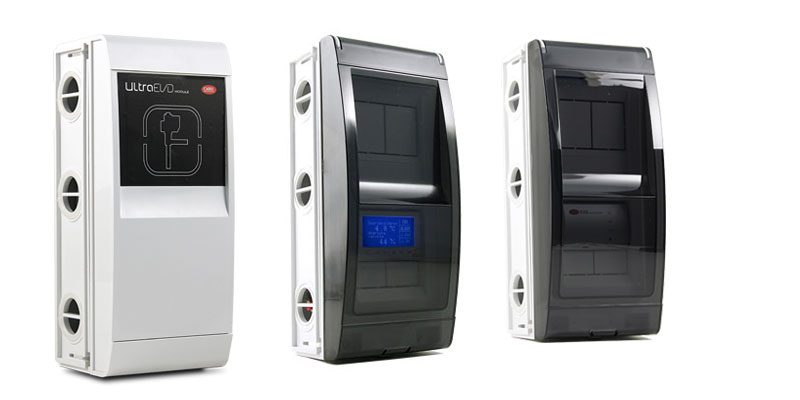

    EVD module is an add-on expansion module for installation alongside UltraCella or SmartCella. It is easy to assemble and connect, and allows energy savings through management of a CAREL EEV.
    The module can be mounted directly on a DIN rail or pre-assembled for wall mounting, thanks to special plastic inserts and three wide bypass holes for convenient and safe wiring, while guaranteeing IP65 on the complete enclosure.
    Available in versions with or without display and with or without Ultracap for retrofit applications.
    The display simplifies programming, meaning the controller can be started after selecting just a few parameters. Ultracap technology guarantees safe valve closure in the event of power failures, avoiding the need to install a solenoid valve.
    UltraCella communicates with EVD Evolution via serial communication, for managing and configuring EVD directly from UltraCella.

    Main functions:

    • superheat control with high pressure, low pressure and low superheat protection
    • guided commissioning procedure (selecting just 4 parameters, stand-alone module)
    • connection diagram shown on the display
    • removable graphic LCD, multi-language interface with online help for the parameters and SI or imperial units of measure
    • user management with password to access different configuration levels
    • copy parameter values to different EVD devices from the display
    • LEDs for monitoring the main parameters
    • use of low-power ratiometric pressure transducers with 4 to 20 mA output (these can be shared between several drivers)
    • second digital input for defrost management
    • possibility to use backup probes
    • Ultracap technology that assures safe valve closure in the event of power failures

    Combined with the CAREL ExV series electronic expansion valves, the EVD Evolution drivers create an integrated control system that optimises evaporator operation and ensures high energy savings.




Dokumentacja

Technical

  • Instrukcje obsługi
    Kod Opis Język Data * Wersja
    Kod +0300005CS

    Opis EVD evolution Ovladač elektronického expanzního ventilu

    Język CZE

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005DE

    Opis EVD evolution Treiber für elektronisches Expansionsventil

    Język GER

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005EN

    Opis EVD evolution electronic expansion valve driver

    Język ENG

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005ES

    Opis EVD evolution driver para válvula de expansión electrónica

    Język SPA

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005FR

    Opis EVD evolution pilote pour vanne d'expansion électronique

    Język FRE

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005IT

    Opis EVD evolution driver per valvola di espansione elettronica

    Język ITA

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005PT

    Opis EVD evolution driver para válvula de expansão eletrônica

    Język POR

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005RU

    Opis EVD evolution Привод электронного расширительного вентиля

    Język RUS

    Data 24/01/2024

    Wersja 4.2

    Kod +0300005ZH

    Opis EVD evolution 电子膨胀阀驱动器

    Język CHI

    Data 24/01/2024

    Wersja 4.2

  • Rysunki 2D/3D
    Kod Opis Język Data * Wersja
    Kod 2d-3d Ultra EVD Module

    Opis 2D-3D drawings

    Język ALL

    Data 10/11/2015

    Wersja R0

    Kod 2d-3d Ultra EVD Blind Module

    Opis 2D-3D drawings

    Język ALL

    Data 10/11/2015

    Wersja R0

  • Ulotki techniczne
    Kod Opis Język Data * Wersja
    Kod +0500087FD

    Opis WM00E***00: Ultra EVD Module Modulo di espansione driver valvola elettronica per UltraCella Erweiterungsmodul mit Treiber für elektronisches Ventil für UltraCella

    Język FRE  GER

    Data 22/07/2019

    Wersja 2.5

    Kod +0500087IE

    Opis WM00E**I00: Ultra EVD Module: Modulo di espansione driver valvola elettronica per UltraCella/ Driver-Valve expansion module for UltraCella

    Język ENG  ITA

    Data 22/07/2019

    Wersja 2.5


Commercial

  • Opis zastosowania
    Kod Opis Język Data * Wersja
    Kod +4000009DE

    Opis Intuitionsbasierter wissenschaftlicher Ansatz

    Język GER

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009EN

    Opis A scientific approach applied to intuition

    Język ENG

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009ES

    Opis Aproximación científica aplicada a la intuición

    Język SPA

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009FR

    Opis Approche scientifique appliquée à une hypotèse

    Język FRE

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009IT

    Opis Approccio scientifico applicato all’intuizione

    Język ITA

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009JA

    Opis 科学的アプローチの直観化

    Język JAP

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009PT

    Opis Aproximação científica aplicada à intuição

    Język POR

    Data 11/02/2011

    Wersja 1.0

    Kod +4000009ZH

    Opis 直观化的 科学方法

    Język CHI

    Data 11/02/2011

    Wersja 1.0

  • Other related documentation
    Kod Opis Język Data * Wersja
    Kod +3000192EN

    Opis Cella Range - Solutions for cold rooms

    Język ENG

    Data 20/12/2023

    Wersja 2.5

    Kod +3000192IT

    Opis Cella Range - Soluzioni per celle frigorifere

    Język ITA

    Data 20/12/2023

    Wersja 2.5

    Kod +3000192DE

    Opis Cella Range - Lösungen für Kühlräume

    Język GER

    Data 20/12/2023

    Wersja 2.5

    Kod +3000192ES

    Opis Cella Range Soluciones para cámaras frigoríficas

    Język SPA

    Data 02/10/2019

    Wersja 2.0

  • Success Story
    Kod Opis Język Data * Wersja
    Kod +4000057EN

    Opis Energy savings in cold rooms

    Język ENG

    Data 20/11/2023

    Wersja 2.0

    Kod +4000057IT

    Opis Risparmio energetico nelle celle frigo

    Język ITA

    Data 20/11/2023

    Wersja 2.0

    Kod +4000057DE

    Opis Energie sparen bei Kühlräumen

    Język GER

    Data 20/11/2023

    Wersja 2.0

    Kod +4000057FR

    Opis Économie d’énergie dans les cellules frigorifiques

    Język FRE

    Data 20/11/2023

    Wersja 2.0

    Kod +4000057ES

    Opis Ahorro energético en las cámaras frigoríficas

    Język SPA

    Data 20/11/2023

    Wersja 2.0

    Kod +4000057NL

    Opis Energiebesparing in koelcellen

    Język DUT

    Data 20/11/2023

    Wersja 2.0

    Kod +4000010FR

    Opis Plus d’économies avec les Solutions CAREL Retail

    Język FRE

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010DE

    Opis Extra-Energie sparen mit CAREL retail sistema

    Język GER

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010EN

    Opis Extra savings with CAREL retail sistema

    Język ENG

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010ES

    Opis Extra economia com CAREL retail sistema

    Język SPA

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010IT

    Opis Extra risparmio con CAREL retail sistema

    Język ITA

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010PT

    Opis Ahorro extra con CAREL retail sistema

    Język POR

    Data 11/02/2011

    Wersja 1.0

    Kod +4000010JA

    Opis よりよい省エネを、 CAREL retail sistemaで

    Język JAP

    Data 11/02/2011

    Wersja 1.0
